Shape | Height | Tip Set Back | Radius | Tip Angles |
---|---|---|---|---|
OPUS | 14 µm | 0 µm | < 7 nm* | 0° front, 35° back, <9° side |

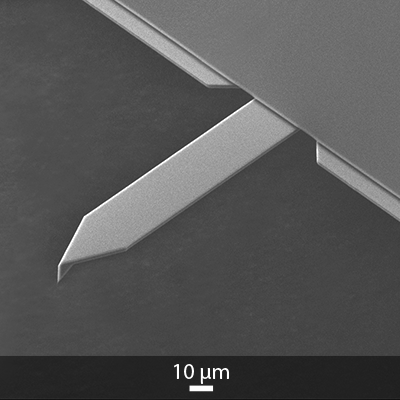

Shape | Length | Width | Thickness | Force Const. | Res. Freq. |
---|---|---|---|---|---|
Beam | 200 µm(190 - 210 µm)* | 40 µm(38 - 42 µm)* | 3.5 µm(3 - 4 µm)* | 9 N/m(3 - 22 N/m)* | 135 kHz(85 - 175 kHz)* |
30 nm Al on the back side of the cantilever

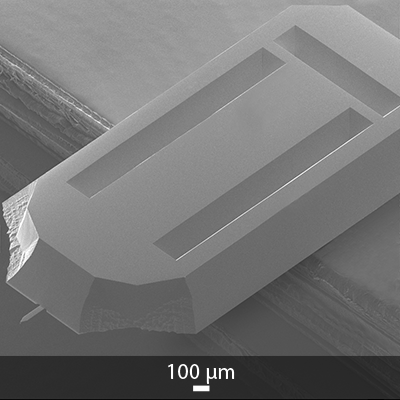

The 200AC series is designed for AC mode AFM imaging of standard and soft samples. The uncoated version offers a sharp tip apex, chemical inertness and a high cantilever Quality factor. The tetrahedral tip is located precisely at the free end of the cantilever. This allows the tip to be positioned accurately over the area of interest on the sample surface.
